▶ 精密集成系统 ▶ 180°隐藏式内开内倒五金系统



FUNCTIONAL HARDWARE CONFIGURATION SYSTEM

180°隐藏式内开内倒五金系统











▼Matters Needing Attention:

1.Applicable to inner opening and inner inverted window series;

2.Quick installation design: no need to mill or punch holes, quick and convenient installation;

3.With positioning auxiliary parts, greatly improve the installation efficiency and accuracy;

4.Adjustable upper and lower hinges: adjust window sash clearance to ensure accurate installation;

5.Adjustable pin and corner parts:Adjust the transmission distance, eliminate the transmission rod length error;

6.Hinge standard bearing capacity up to 80kg;

7.It still works normally after 35,000 open and close cycles;

8.The tensile strength of the transmission rod is more than 3,000N


▼配置说明:

1.本配置适用于内开内倒窗系列;

2.快装式设计:无需铣孔或冲孔,安装快捷方便;

3.搭配定位辅件,极大地提高了安装效率与精准度;

4.上下铰链可调:调节窗扇间隙,确保安装精准;

5.插销及转角器可调:调节传动距离,消除传动杆长度误差;

6.本配置铰链标准承重可达80kg;

7.35,000次启闭循环后仍可正常工作;

8.传动杆抗拉强度高达3,000N以上。

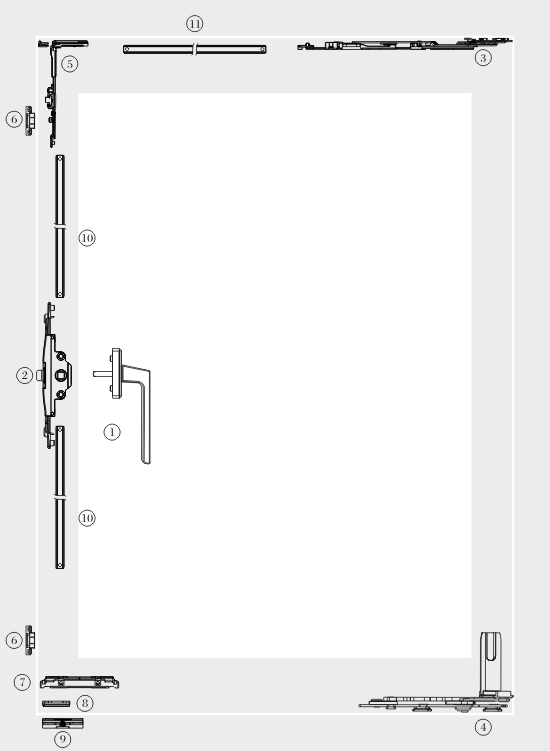

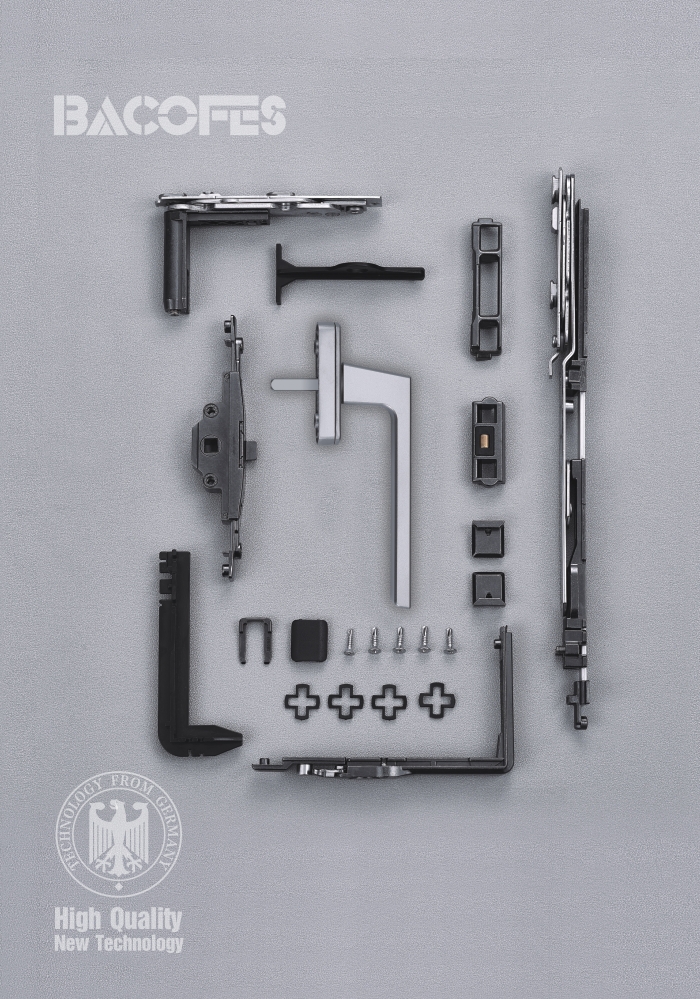

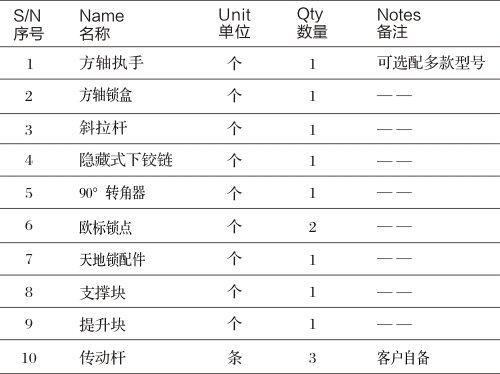

Standard Configuration

标准配置
