FUNCTIONAL HARDWARE CONFIGURATION SYSTEM

合页式内开内倒五金系统

▼Matters Needing Attention：

1. Scope of application: SRH(height of fan slot)=480-2450mm, SRW(width of fan slot)=350-1600mm；

2. Hinge bearing: maximum 130Kg, adjustable in three dimensions,upper and lower ±3mm, left and right ±3mm, internal and external ±1mm；

3.According to the different profiles matching hardware, this configuration is for reference only.

▼配置说明：

1.适用范围：SRH(扇槽高度)=480-2450mm，SRW(扇槽宽度)=350-1600mm；

2.合页承重：最大130Kg，三维可调，上下±3mm，左右±3mm，内外±1mm；

3.可根据不同型材选配五金件，本配置仅供参考。

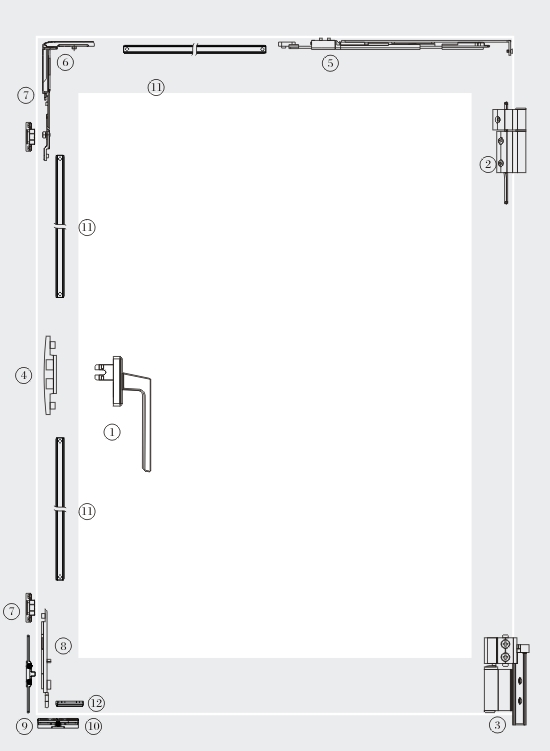

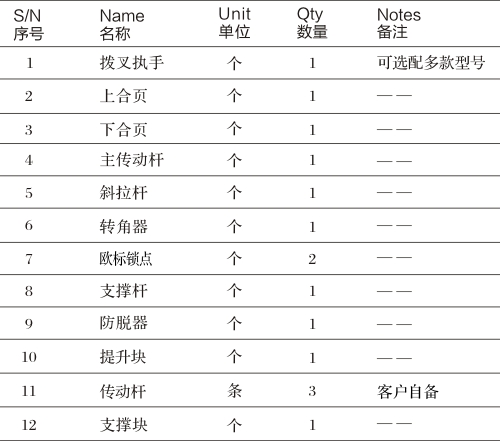

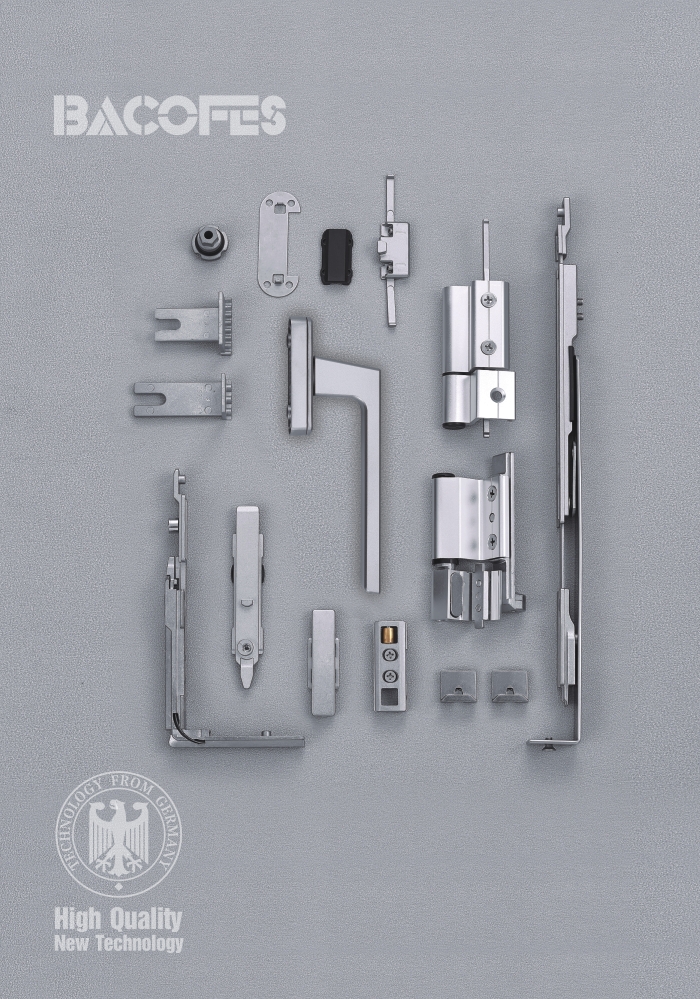

Standard Configuration

标准配置
